The Carbon Offroad Remote Remote 2.5 inch body monotube shocks kit is a class leader in premium shock manufacturing. Rivalling the other more wel known brands you can be rest assured knowing that we have conducted over 200|000km of on road testing in Australia with absolutely zero seal or component failures during this period and during the initial rollout of product into the market.

Front Shocks feature 22mm diameter shafts for extra strength| with 18mm diameter shafts on the rear shocks.

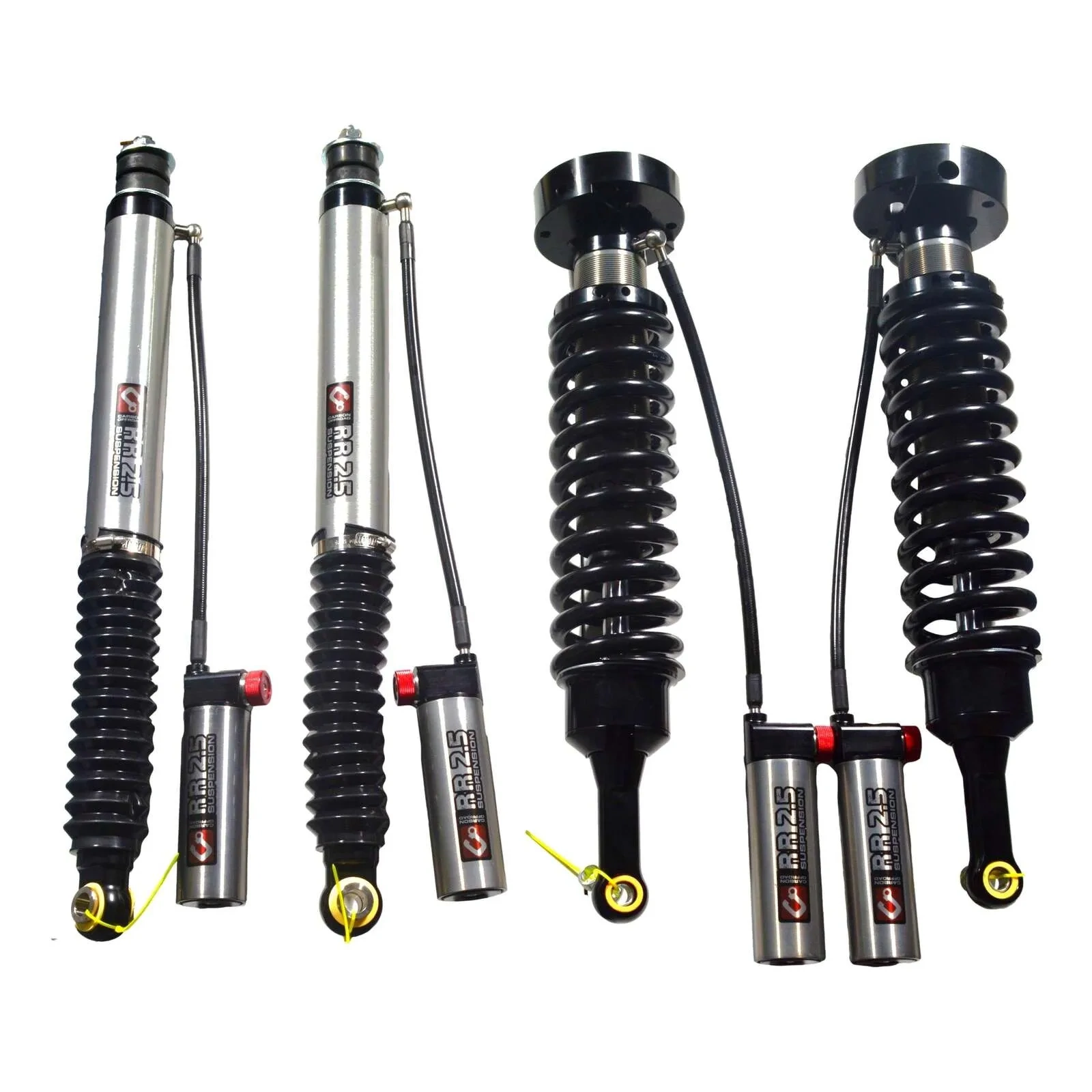

Complete kit includes (40-75mm Lift Kit)

2 x Front Uprated Carbon Coil Springs (750lb suit Bar & Winch) Coil may be black or silver in colour dependand on stock availability
2 x Front Carbon 2.5RR height adjustable struts (inc top hat ) Fully assembled
2 x Rear Carbon 2.5RR Shock Absorbers
1 x Remote reservoir mounting kit for front and rear shocks
1 x Coilover adjuster spanner


Rear Coil Suspension Options - 50mm lift (additional cost)

Carbon rear coil spring 100-150kg (standard height)
King Springs rear coil springs 100-250kg (raised height)
King Springs rear coil springs 300-500kg (raised height progresive and Linear rate)
  • *Note the following supporting items are recommended to be used with this kit.

Diff drop kit
Upper control arms (for lift over 50mm)
Shock Specs:

Monotube Design- Maximum fluid volume and control
3.75mm Brushed Steel Nickle Plated Body - Maximum and strength durability and protection
2.5"/63.5mm Outer Body - Increased fluid volume to prevent fade and improve control
18mm Hardened Chrome H/D Shaft - Tough Shaft and for maximum durability
Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
Quality Bushes - Polyurethane or and pure rubber dependant on application - Complete with CNC Alloy Billet Tubes
Billet CNC T6 and Alloy Anodised Shock Body Caps and Mounts
Multi-Stage Velocity Sensitive Piston and Valve and - For the Ultimate in Comfort & Control
Seal - Active Shaft Seal and - Provides a pressurised shaft sealing unit which has proven to have zero failure in all testing conditions.
Internal fluid - High quality Fuch shock absorber fluid able to withstand extreme temperatures
Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
Nitrogen Gas Charged - to prevent fade and cavitation(foaming) of the fluid
Complete with concertina dust boots


Carbon Coil Spring and Specifications

Shot Peened - To Stress relieve the outer surface improving coil spring longenvity
Scragged - The coil spring is compressed beyond it's yield point to prevent premature sagging
Coil Spring rates - Rates are chosen to ensure a comfortable ride whilst being able to carry the extra load
Coil Finish - Powder Coated in a sleek matt black and fininsh
High Quality Spring Steel - With increased rates for load carrying
Computer Designed Springs and - For the ultimate in quality
Bar Peeled - To remove surface imperfections
Manufacturing process - Made using computer controlled coil winders for precise fitment and quality control
Note - All heights mentioned are an estimate only and - Vehicle ride heights may vary depending on age| make model| vehicle accessories weight| factory suspension systems
Please be advised due to the Toyotas KDSS System we are not responsible for the 200 series lean problems associated with this vehicle.
If your vehicle is equipped with the KDSS System please be aware that you may need to adjust one side of your vehicle higher than the other to compensate for this system. This problem is not covered under our product warranty.
Fitting Note: and Due to the long travel nature of this shock| when fitting check clearance of the lower front strut peg to the inside of the lower strut mount at full droop. Through our R&D we note that the leg gets close at full droop so it may be required to dremel or file for 1mm clearance at full droop. Due to the large tolerances in OE manufacturing| we cannot guarantee it won't clear on every vehicle. The benefit is that you will be getting the most available travel from a bolt on and shocks system in the market.
SKU RR25-TOYOTA-LC200
Brand Carbon Offroad
Shipping Weight 30.0000kg
