DESCRIPTION

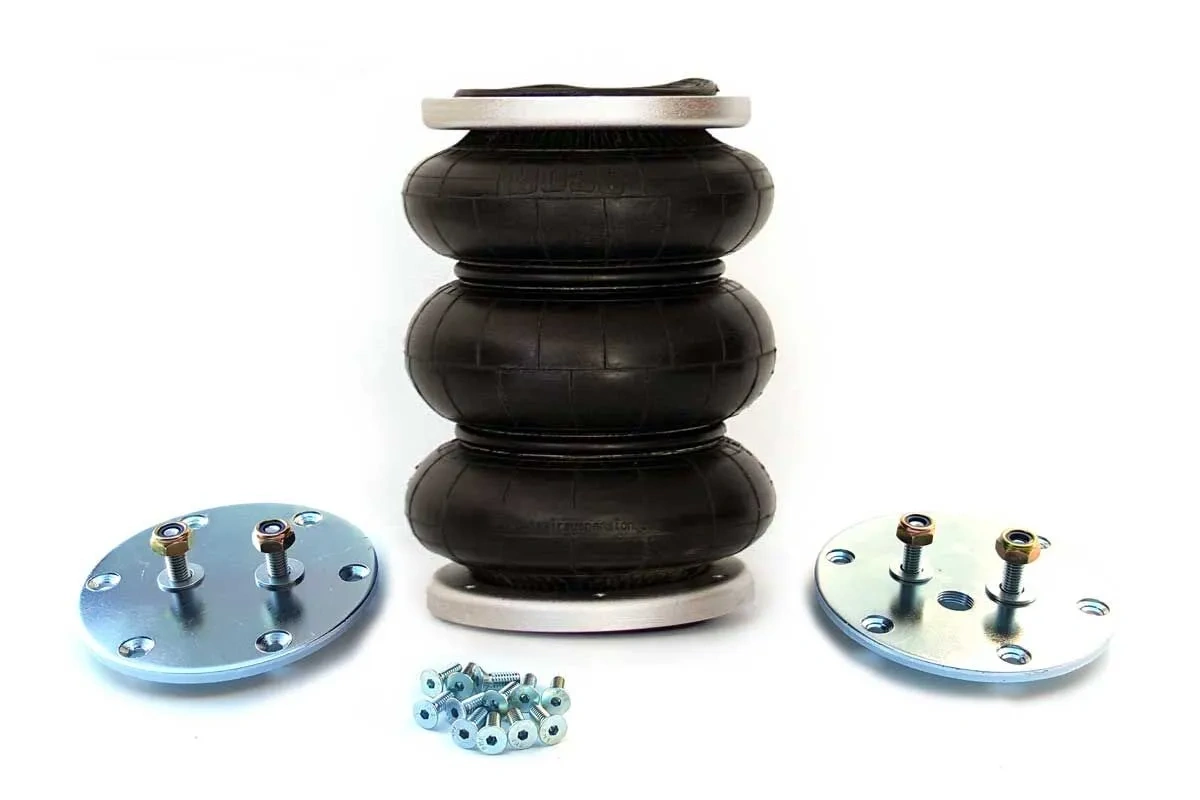

#2603 triple bag complete have the same diameter as the #2600 bag but with 1 extra bellow making for a genuine 10″ travel (EXTENDED HEIGHT APPROX 380MM) airbag| perfect for coil replacements in 4wd vehicles and off road situations.

Includes:

  • 2600lb Extreme Series Tripple Bag
  • Top and Bottom plate and stainless bolts.
  • 12 countersunk stainless bolts

Fully compressed – 75mm with 6mm ends fitted
Max diameter – 190mm (widest when fully compressed)
Max Height – 380mm
Max working pressure 0-160psi
Test pressure – 480psi
Burst pressure – 1000psi
Female 3/8 NPT port for Air inlet port.

SKU LA-2603
Brand BOSS AIR SUSPENSION
Shipping Weight 10.5000kg
Shipping Width 0.200m
Shipping Height 0.201m
Shipping Length 0.200m
