Carbon Offroad Scout Pro 12K Winch And Recovery Kit Combo CW-XD12-COMBO7
SKU code: CW-XD12-COMBO7
$1,695.00
Awesome Value!
Take the hassle out of your recovery
with a Carbon 12000lb Scout Pro Winch and recovery gear combo deal.
Simply just purchasing a winch doesn't mean you'll get yourself out of a sticky situation offroad.
You need an ability to attach the hook to a tree or increase your line pull with a double line pull
or simply just pull another 4wder out.
With this combo kit you can perform most recoveries

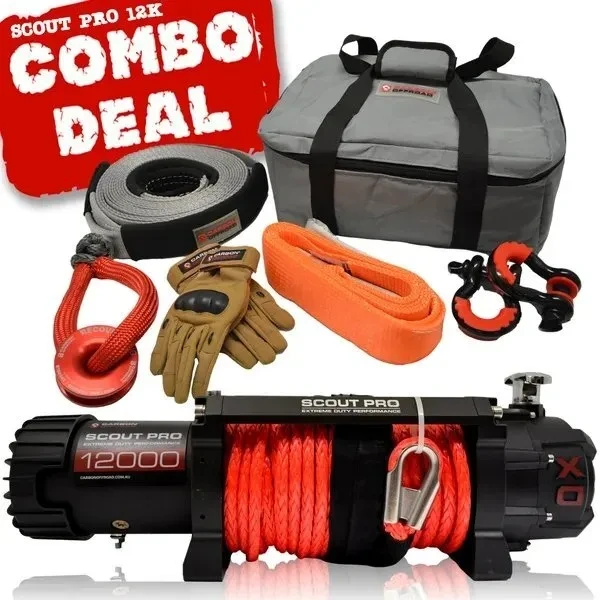

Includes
1 x Carbon 12000lb Scout Pro Winch Package (super fast 180:1 gear ratio) std is 216:1
1 x Carbon Essentials Snatch and Recovery kit
1 x Recovery bag
1 x Pair gloves
1 x 8T x 9m snatch strap
1 x 10T tree trunk protector
2 x 4.75T bow shackles
1 x 12T soft shackle
1 x 10T recovery ring
The Carbon Offroad Essential Snatch and Winch 4x4 Recovery Kit is designed for equipping the 4x4 operator with the necessary essential recovery products to safely perform two major tasks in safe vehicle recovery.
Firstly the snatch or tow recovery| the kit is equipped with a 8000 kg x 9 metre long snatch strap| along with the included steel D shackles and synthetic leather gloves for the user| allows safe connection to the vehicle being recovered and the vehicle conducting the tow recovery.
Secondly a winch recovery| the operator can perform both a single line and a double line pull| safely with the tree trunk protector strap| d-shackles| snatch block and gloves.
This product features:
500 denier ripstop oxford canvas material
Heavy duty webbing straps
Heavy duty zipper closure
Internal pockets for snatch block and d-shackles
Sleeve under lid for gloves storage
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches
Are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis| or the owner of vehicles which are extremely heavy| kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K| increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead| you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2021 Version 2 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor| you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM| F-Truck and Silverado are generally wide enough to not be a problem| Fitment to any dual cab| 70 series| 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 12000lb winch comes with 12mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2021 V2 winch chassis
7.0HP Motor
180:1 heavy duty performance gearbox
12mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO 16 tonne soft shackle compatible winch rope thimble
High performance heavy duty upgraded solenoid unit| the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
CW-XD12
12V DC performance specs (first layer of drum)
Line Pull Line Speed Motor Pull by layer
Lbs.(Kgs.) FT./min(M/min.) Current layer/Lbs(Kgs.)
0 43.3 (13.2) 70 amps 1/12|000 (5450)
2000 (910) 14.8 (4.5) 115 amps 2/9800 (4450)
4000 (1810) 12.8 (3.9) 165 amps 3/8300 (3770)
6000 (2720) 9.2 (2.8) 215 amps 4/7200 (3270
10000 (4540) 7.5(2.3) 310 amps
12000 (5450) 5.6(1.7) 370 amps
| SKU | CW-XD12-COMBO7 |
| Brand | Carbon Offroad |
| Shipping Weight | 36.0000kg |
