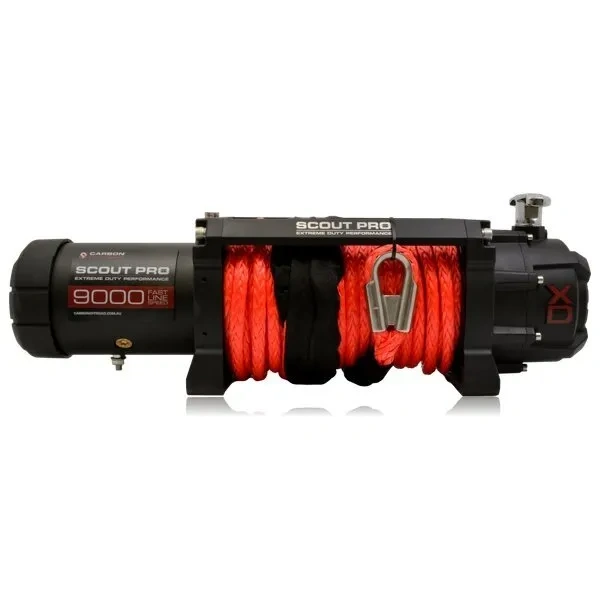

Carbon Offroad Scout Pro 9.0 Extreme Duty 9000lb Ultra High Speed Electric Winch CW-XD9
SKU code: CW-XD9
With larger modulus gearsets compared to our CW-12K| increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead| you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2021 Version 2 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor| you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM| F-Truck and Silverado are generally wide enough to not be a problem| Fitment to any dual cab| 70 series| 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 9000lb winch comes with 10mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2023 V3 winch chassis
7.0HP Motor
104:1 heavy duty performance gearbox
10mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO Winch Hook
High performance heavy duty upgraded solenoid unit| the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
Installed weight of 26.7kg
CW-XD9
12V DC performance specs (first layer of drum)
Line Pull Line Speed Motor Pull by layer
Lbs.(Kgs.) FT./min(M/min.) Current layer/Lbs(Kgs.)
0 62.3(19) 80 amps 1/9|000 (4090)
2000 (910) 17.4(5.3) 150 amps 2/7|625 (3|460)
4000 (1810) 15.1(4.6) 220 amps 3/6|460 (2930)
6000 (2720) 13.4(4.1) 280 amps 4/5|480 (2|490)
8000 (3630) 11.5(3.5) 350 amps
9000 (4090) 10.5(3.2) 380 amps
SKU | CW-XD9 |
Brand | Carbon Offroad |
Shipping Weight | 30.0000kg |
