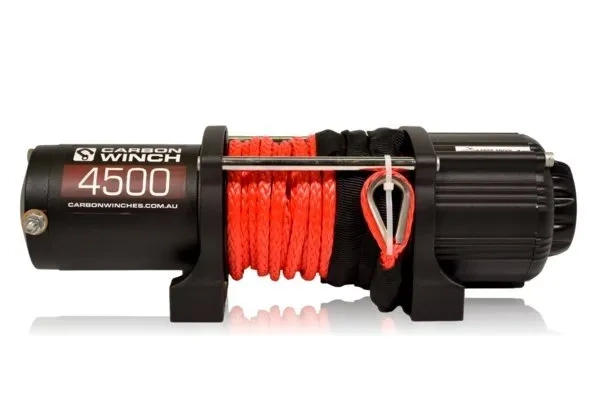

The Carbon Offroad 4|500 lb Capacity ATV/UTV winch for big ATV| UTV and sides x sides| and car trailers. This winch has been upgraded and all stock from September 2021 onward have been re-designed to include better clutch handle operation| seals allowing use in wet conditions| better quality finish and components all for the same price.

A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an exisitng pedestal on a trailer| or into a winch location on an ATV or Buggy.

With wireless remote control included free and a handlebar rocker switch control option| it's a very versatile winch setup.

Perfect for small car and equipment trailers| great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers.

A great small all rounder winch to make work easier or to get your buggy out of the bog.


FEATURES
4|500 lb (2|040 kg ) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance.
Mechanical load holding and dynamic brake for 100% braking.
High efficiency| low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid wire rope payout
Synthetic rope

SPECIFICATION / PART NUMBERS CW-45

Part number: CW-4.5
Rated line pull: 4|500 lbs| (2040kg) single-line
Motor: 12V DC 1.9HP motor
Remote Control: Handlebar Mini-Rocker
Wireless Remote Control: included
Geartrain: 3-Stage Planetary.
Gear Ratio: 176:1
Clutch (freespooling): Split Ring Gear
Brake: Dynamic and mechanical braking
Drum Diameter/Length: 2.5��/4.4�� (60.5mm/112mm)
Synthetic Rope: 43�| 1/4�� diameter ( 13m| 6.35 diameter)
Fairlead: Aluminium Hawse
Mounting Bolt Pattern: 3.0�� x 6.59�� ( 76mm x 167mm )
Winch Dimensions ( L x W x H ): 14.9'' x 4.7'' x 4.5'' (379x 120 x 115mm )
Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
Shipping Weight: 12.2kg


12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current Pull by layer
layer/Lbs(Kgs.)
0 20.4(6.2) 31 Amps 1/4500(2040)
1000 14.2(4.3) 65Amps 2/3750(1700)
2000 10.9(3.3) 96Amps 3/3510(1595)
3000 7.7(2.4) 125Amps 4/3300(1500)
4500 4.9(1.5) 175.Amps
SKU CW-45
Brand Carbon Offroad
Shipping Weight 12.0000kg
