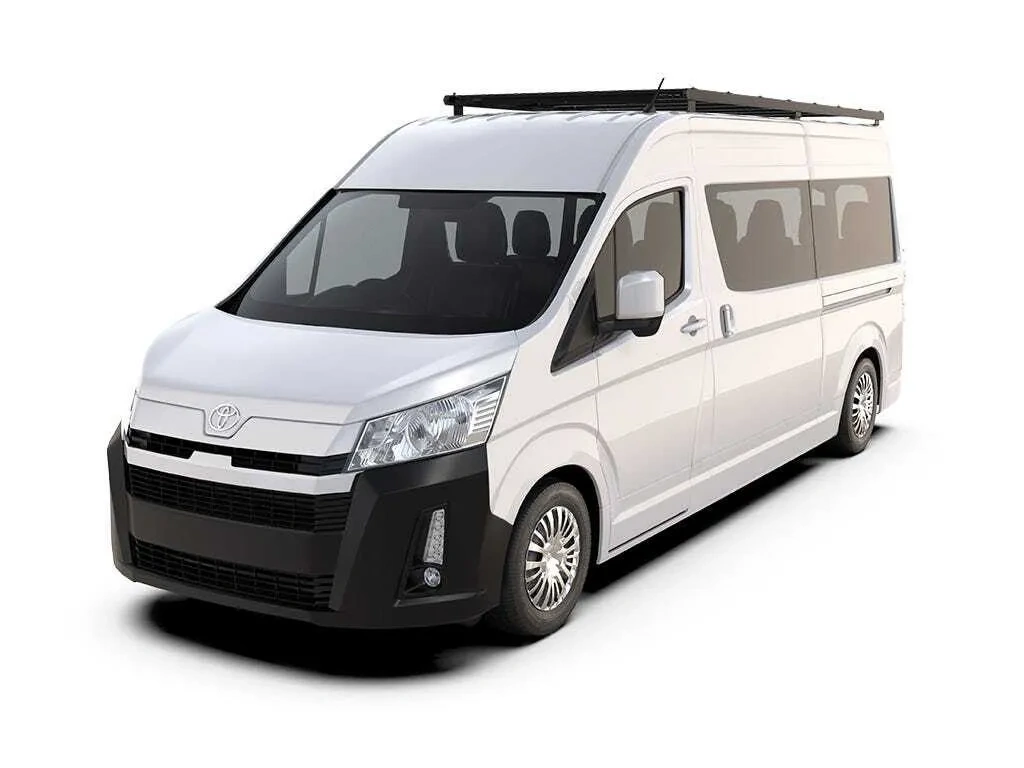

Compatible with the Toyota HiAce LWB/SLWB High Roof (2019-Current) vans with a vehicle length of 5265mm / 207.3''. Load-carrying area: 2974mm (117'') x 1344mm (52.9''). Six (6) Mounting Feet secure into van's existing factory mounting points. Included Slat Bracket can be inverted for a lower profile at 85mm (3.4'') height| or left in standard configuration at 131mm (5.2''). Compatible with most Front Runner side mount accessories. Slats can be configured to any spacing to accommodate roof AC| vents| or any other accessories. Fitment guide and all mounting hardware are included. All Front Runner racks are backed by a limited lifetime warranty.*
KVTH002T - Toyota HiAce LWB/SLWB High Roof (2019-Current) Slimpro Van Rack Kit Consisting of:2x FAVF005 - Volkswagen Crafter Van Rack Foot Set / 65mm1x FAVF006 - Volkswagen Crafter Van Rack Foot Set / 90mm1x RRAC207 - Van Rack Joiner Kit2x RRAC208 - Van Rack Side Profile End Caps1x RRAC978 - Toyota HiAce LWB(2019-) SlimPro Rack Spacer4x RRNS1255 - Narrow Slat / 1255mm (Pair)1x SPVT001 - Van Rack Side Profile / 1156mm1x SPVT004 - Van Rack Side Profile / 1762mm1x WDST013 - Wind Deflector Van Rack 30mm Lip Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steel Assembled Rack Kit Dimension: 2975mm (177.1'') L x 1345mm (53'') W x 135mm (5.3'') H Approximate Installed Weight: 28.57kg (62.99lbs) Toyota Hiace Van Rack Kit heights are adjustable from 85mm (Z bracket inverted) to 131mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat. The slat T slots and side profiles take standard M8 hex bolts top and bottom. Shipping Dimensions:Width: 445mm (18'')Length: 1770mm (70'')Height: 160mm (6'') Shipping Weight:Weight: 35kg (77lbs)
SKU KVTH002T
Barcode # 6009542275949
Brand Front Runner
Shipping Weight 35.0000kg
Shipping Width 1.770m
Shipping Height 0.160m
Shipping Length 0.445m
