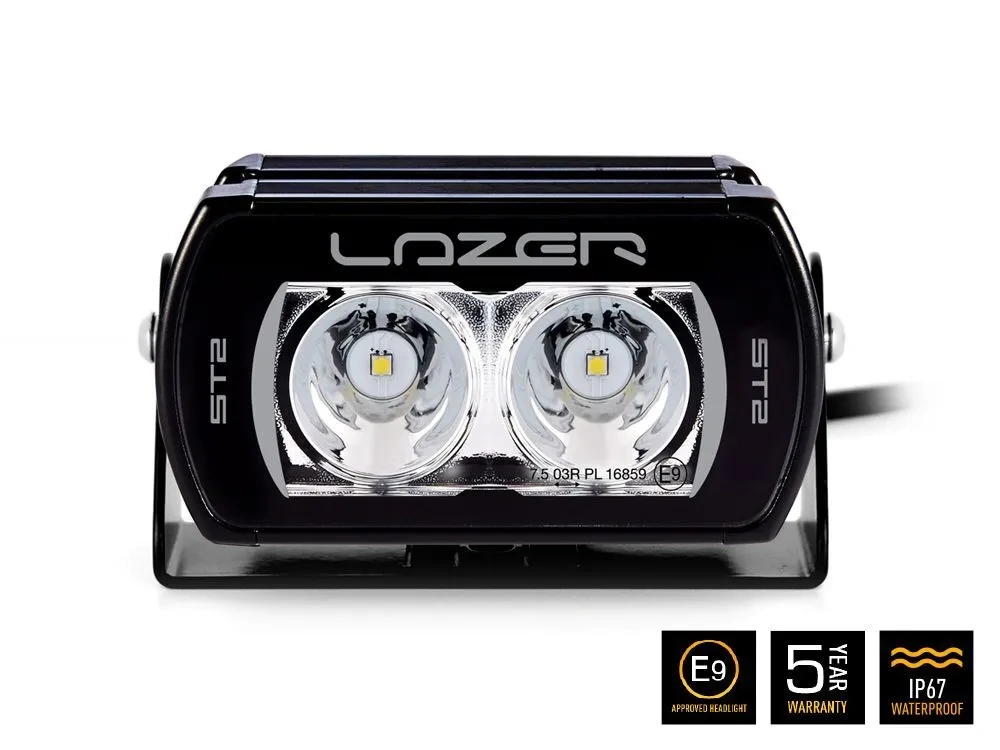

Lazer Lamps ST2 Evolution Lights 0002-EVO-B
SKU code: 0002-EVO-B
High density| premium ‘bin’ 11W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective| vacuum-metallised conical optics deliver excellent spread
Seamless| low profile design facilitates installation and avoids dirt/ice accumulation.
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 112 Class B Driving Lights for on-road high beam function
UNECE approved Reg 10
IP67 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin superseal connector
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 430 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 2068 Lm |
| Total Driver 'FOV' Flux † | 1245 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 |
| Power Consumption | 23 Watts |
| Current Draw (at 14.4V) | 1.6 Amps |
| Start-up Time * | 100ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 7.5 |
| DIMENSIONS | |
| Width | 124 mm |
| Depth | 68 mm |
| Height | 64 mm |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 40° |
| 0.25 lx Line | 393 metres |
| 0.5 lx Line | 278 metres |
| 1 lx Line | 196 metres |
| 3 lx Line | 113 metres |
| SKU | 0002-EVO-B |
| Barcode # | 5060404991620 |
| Brand | Lazer Lamps |
| Shipping Weight | 0.4300kg |
