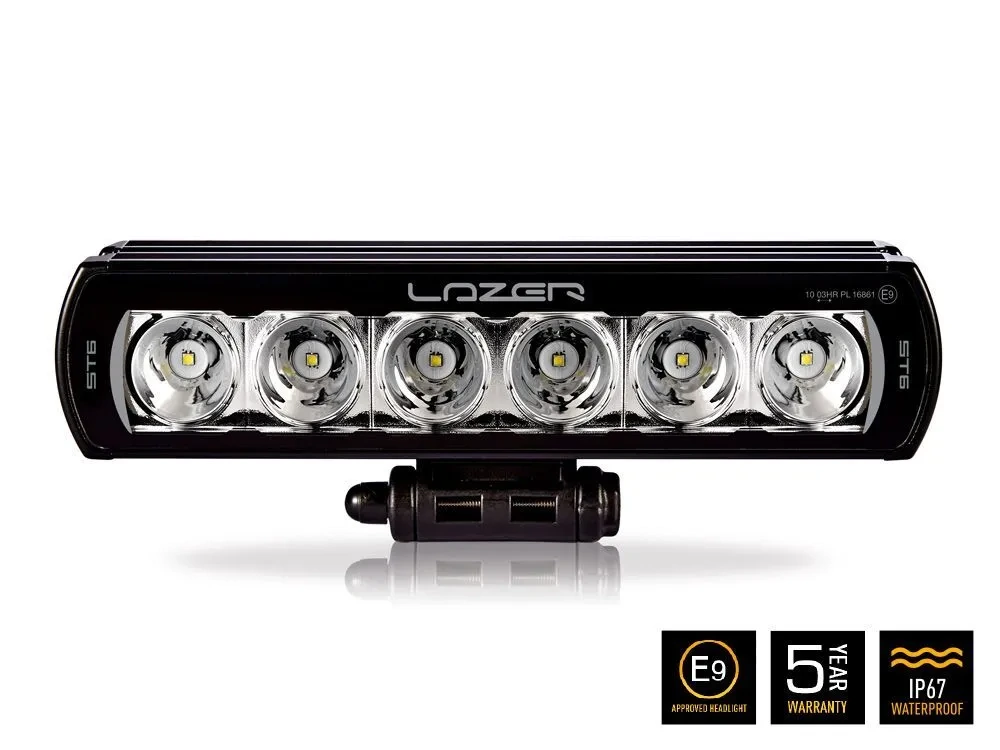

0006-EVO-B, LAZER LAMPS, LAZER LAMPS ST-6 Evolution LED LIGHT 0006-EVO-B

The ST / T Evolution range of products feature highly efficient| premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Available in sizes ranging from the 124mm (5”) ST2 to the 1164mm (46”) T28| these are LED light bars benefitting from huge versatility| having been adopted across a wide range of different applications and vehicle types| since the products were first launched in 2010. Since then| the range has been re-engineered and re-designed incorporating the latest and best technology alongside a more contemporary| seamless| low profile design making them easier to install| more resistant to dirt| snow and ice accumulations and with styling guaranteed to complement and enhance the appearance of modern vehicles. Superior lighting performance is delivered by the high power 11W LEDs| alongside advanced electronic design| combined with sophisticated thermal management systems and ultra-reflective vacuum-metallised reflectors to harness the maximum amount of light where you need it: on the road or trail ahead. Like all Lazer products| the LEDs are carefully selected at 5000k colour temperature to maximise sharpness and definition of your surroundings. Performance aside| the ST / T Evolution LED light bars are built to last backed by a comprehensive 5 year warranty. Designed| engineered and manufactured in-house| in the UK| there’s no compromise when it comes to build quality| ensuring the lights perform as well as they look and function for years to come. Specs Based on: 1x ST6 Evolution. Voltage Range (DC) -- 10-32V LED Life -- 50|000 hours Weight -- 912 gr HIGH BEAM FUNCTION Total Luminous Flux -- 6204 Lm Total Driver 'FOV' Flux † -- 3735 Lm Colour Temperature -- 5000K Number of High Output LEDs -- 6 Power Consumption -- 70 Watts Current Draw (at 14.4V) -- 4.9 Amps DIMENSIONS Width -- 284 mm Depth -- 68 mm Height -- 64 mm PHOTOMETRIC DATA Horizontal Beam Angle -- 40° 0.25 lx Line -- 680 metres 0.5 lx Line -- 481 metres 1 lx Line -- 340 metres 3 lx Line -- 196 metres † Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right| and +/- 10o up/down. For more information – click here. What's Included: x1 ST6 Evolution LED Lamp x1 Centre Mount (1114K) x1 Installation Instructions SKU: 0006-EVO-B

Voltage Range (DC)	10-32V
LED Life	50,000 hours
Weight	912 gr
HIGH BEAM FUNCTION
Total Luminous Flux	6204 Lm
Total Driver 'FOV' Flux †	3735 Lm
Colour Temperature	5000K
Number of High Output LEDs	6
Power Consumption	70 Watts
Current Draw (at 14.4V)	4.9 Amps
Start-up Time *	100ms
CERTIFICATION
High Beam	ECE R112
ECE Reference	10
DIMENSIONS
Width	284 mm
Depth	68 mm
Height	64 mm
PHOTOMETRIC DATA
Horizontal Beam Angle	40°
0.25 lx Line	680 metres
0.5 lx Line	481 metres
1 lx Line	340 metres
3 lx Line	196 metres
