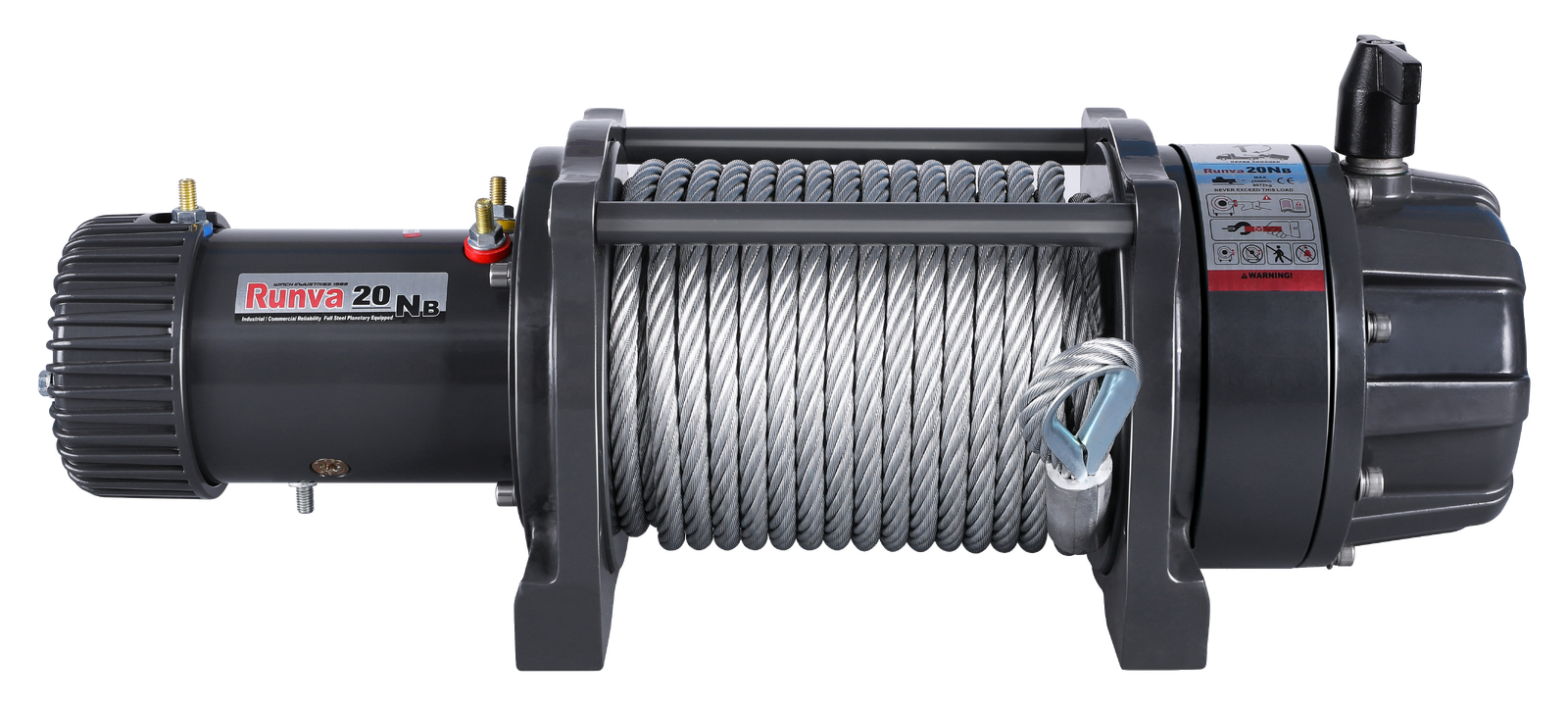

Runva 4X4 Winch EWB20000 Premium 24V 20000lb With Steel Cable IP67 Protection EWB2000024VS
SKU code: EWB2000024VS
- 20|000LB LINE PULL CAPACITY
- IP67 INGRESS PROTECTED
- RATCHET STYLE BRAKE IN GEARBOX
- EXTREME DUTY – SUITABLE FOR COMMERCIAL APPLICATIONS
The Runva EWB20000 Premium is our extreme duty 20|000lb recovery winch. Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 370:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of 8.5M/Min*| this winch will get the job done in no time.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads| this will not wear out.
The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB20000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.
If you are looking for a heavy duty winch| for either recreational or commercial applications| the EWB20000 Premium is the winch for you. This model is perfect for your expedition Unimog| Iveco Daily| Tow Truck| marine or military applications. (+ many other applications)
RATED LINE PULL: 20|000LB (9|072KG)
MOTOR: (12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HP
GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY
GEAR RATIO: 370:1
CLUTCH TYPE: STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION: GEARBOX CAN BE ROTATED
BRAKE: AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE: AIRCRAFT GRADE STEEL CABLE
CABLE SIZE: 12MM X 26.5M
DRUM SIZE: 88MM X 217MM
MOUNTING BOLT PATTERN: 254MM X 114.3MM; 254MM X 165.1MM
(8X M12 BOLTS)
OVERALL DIMENSIONS: 636MM X 214MM X 252MM
REMOTE CONTROL: HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS: 2X 1.8M HEAVY DUTY LEADS
FINISH: GREY POWDER COAT
WARRANTY: LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY (18 MONTH COMMERCIAL USE WARRANTY)
SKU: EWB2000024VS
SHIPPING WEIGHT: 70.00KG
SHIPPING WIDTH: 0.360M
SHIPPING HEIGHT: 0.330M
SHIPPING LENGTH: 0.720M
SKU | EWB2000024VS |
Brand | Runva |
Shipping Weight | 70.0000kg |
Shipping Width | 0.360m |
Shipping Height | 0.330m |
Shipping Length | 0.720m |
