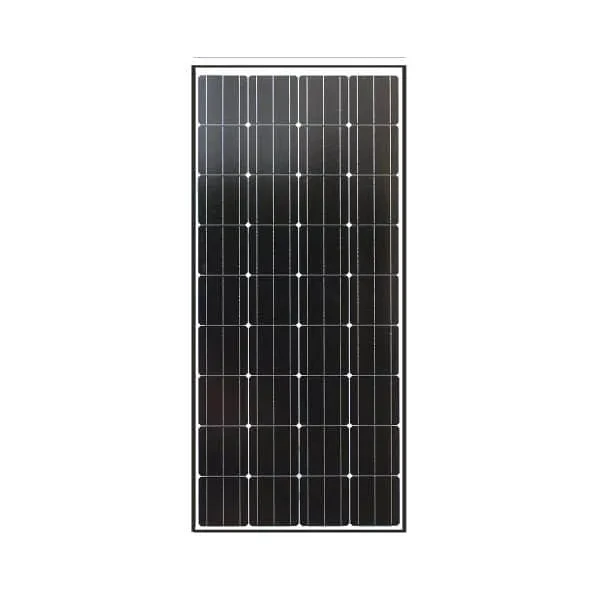

The KT 170 Watt| 12V Single Cell Mono-crystalline Solar Panel (Model No. KT70719) is ideal for a variety of applications including 4×4| caravan| motorhome| camping & marine. This panel offers a 10 Year Warranty and 25 Year Efficiency Guarantee.

Dimensions & Weight:

  • Dimensions (Height): 1476mm
  • Dimensions (Length): 670mm
  • Dimensions (Depth): 35mm
  • Panel Weight: 11.5Kg

Features:

  • Smaller in footprint than the KT 150W Solar panel
  • New 35mm width adnodised frame (previously 40mm)
  • Panel is smaller in size than its competitors on the market by up to 54%
  • Panel is lighter in weight than its competitors by up to 41%
  • 3M Positive/Negative Cables with Alligator Clamps
  • Mono-Crystalline Construction
  • Quality Construction with Premium Black Framing
  • Fully Sealed Junction Box on Back of Panel
  • 5 Accreditation Certificates
  • Class A

Warranty & Guarantees:

  • 10 Year Warranty on Manufacture & Build
  • 25 Year Efficiency Guarantee
  • National Warranty Programme

Specifications:

Model Number KT70719
Maximum Power (Pmax) 170Wp
Power Tolerance +3%
Maximum Power Voltage (Vmp) 18.6V
Maximum Power Current (Imp) 9.14A
Rated Voltage 12V
Open Circuit Voltage (Voc) 22.8V
Short Circuit Current (Isc) 9.67A
Operating Temperature -40 to +85 Degrees Celcius
Product Application Class A
Maximum System Voltage 1000V DC




SKU KT70719
Brand KT
Shipping Weight 11.5000kg
