FINALLY| A WORTHY 7" LED HEADLAMP.

You've either heard about or tried the other disaster 7" LED kits on the market. Our Carbon LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our CARBON is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a half halo park light| the CARBON is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs 7" headlights (list of known compatible models in the description).

PERFORMANCE THAT SURPASSES THE VERY BEST.

The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer daytime safety. Anti-Flicker technology for an effortless install.

ADR COMPLIANT.

The CARBON falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights| from the get-go you're all set.

THE NITTY GRITTY.

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycle's light output. Complete with High and Low beams as well as a half LED halo ring park light| the CARBON 7"  is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

  • ADR Approved E-Mark CE
  • Proper Right Hand Drive Beam Geometry
  • H4 Adaptor
  • High Beam 1 Lux @ 235m
  • Low Beam 1 Lux @ 141m

PERFORMANCE BUILD QUALITY

  • Anodized Polyester Powdercoat
  • Lexan Polycarbonate (PC) Lens refractor
  • Die-cast aluminium alloy (ADC12) Heat-Sink
  • IP67 | Ingress Protection
  • Shock Proof| Waterproof| and UV Shielded
  • Protected against Reverse Polarity and Voltage / Current surges
  • Warranty | 2 Years

COMPATIBLE MODELS:

  • 1955-1983 Jeep CJ-5
  • 1976-1986 Jeep CJ-7
  • 1981-1985 Jeep CJ-8
  • 1997-2006 Jeep Wrangler (TJ)
  • 2007-2015 Jeep Wrangler 2-Door (JK)
  • 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
  • 1982 - 1991 Mitsubishi Pajero (L040)
  • Land Rover Defender
  • 70 Series Toyota Landcruiser with a round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • 60 Series Toyota Landcruiser with a round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
  • GQ Patrol
  • Harley Davidson Motorcycles
  • Mercedes Benz G Wagon
  • Kenworth Trucks with 7 inch round headlight



TECH SPECS

LED High Beam: 2 x 10w XML-2 LED
Low Beam: 2 x 15w LED
Park Light: 2 x 1.5w Osram
RAW LUMENS High Beam: 1800Lm
Low Beam: 1250Lm
Park Light: 150Lm
AMP DRAW High Beam: 2.4a @ 13.6v
Low Beam: 1.6a @ 13.6v
Park Light: 0.2a @ 13.6v
LIFESPAN 50|000 Hours
INGRESS PROTECTION IP67
OPERATING TEMPERATURE -30°C~+60°C
LENS MATERIAL LEXAN Polycarbonate
COLOUR TEMP 5700K
VOLTAGE COMPATIBILITY 12v & 24v
PEAK BEAM DISTANCE @ 1 LUX High Beam: 235m
Low Beam: 141m
Park Light: 8m
WEIGHT (each) 1.140kg each
DROP IN REPLACEMENT FOR #6014| 6015| 6016| H6024 and Par 56 headlamp designs
ADR COMPLIANCE ADR 46/00
ADR 49/00



WHAT'S INCLUDED

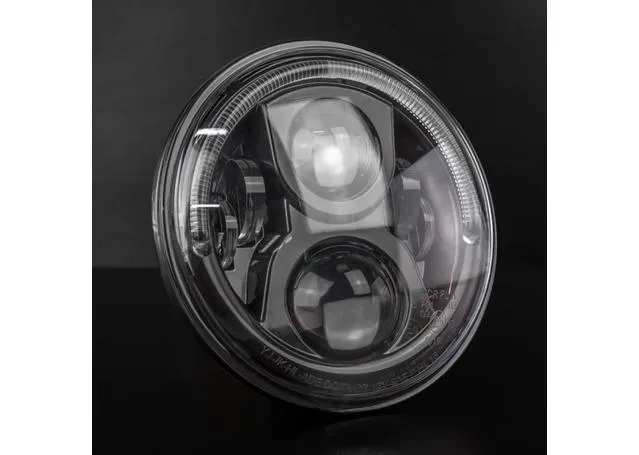

  • 1 x 7-inch STEDI CARBON CHARCOAL LED Headlight



SKU LEDMOTO-CARBON-7BLK
Brand STEDI
Shipping Weight 2.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
