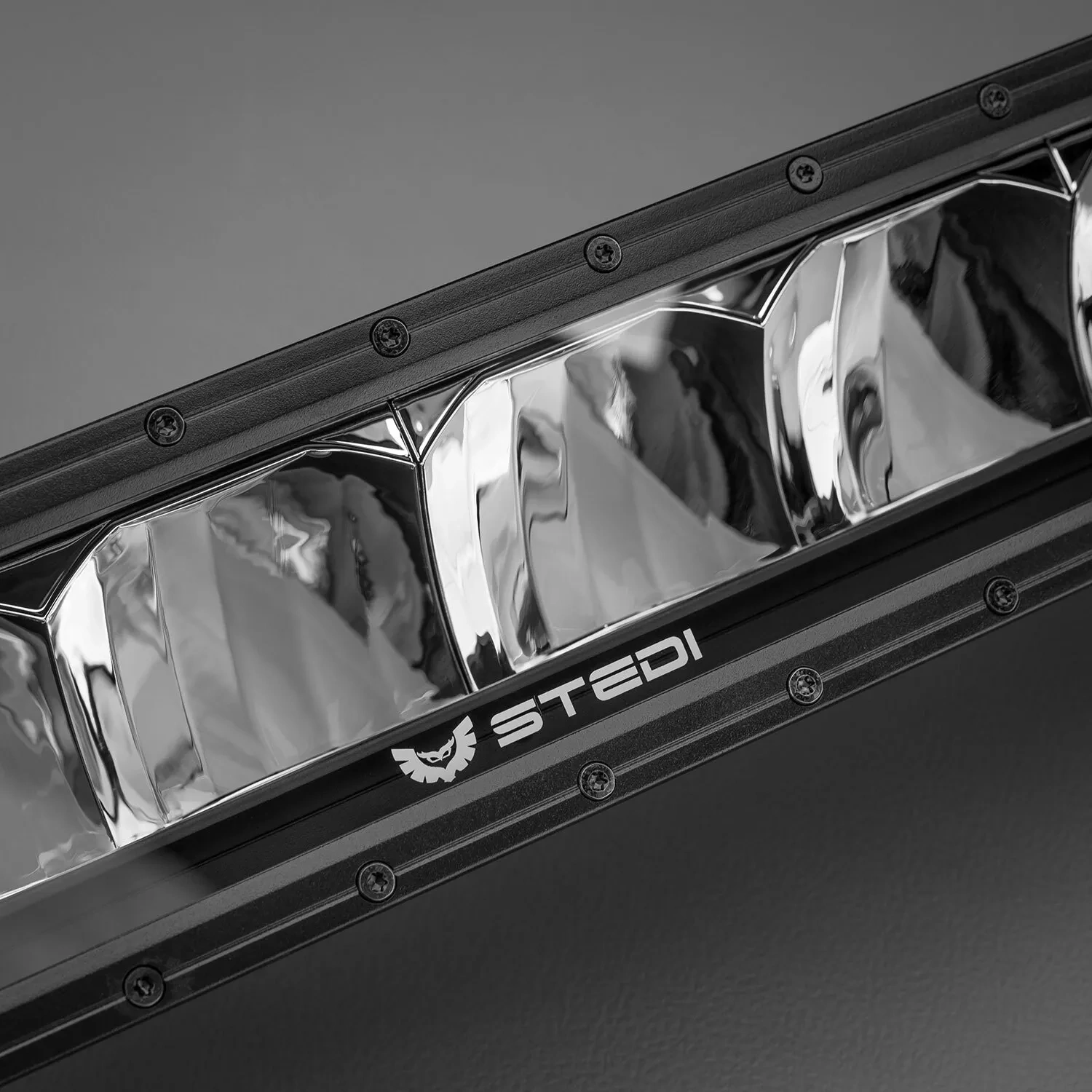

STEDI Curved 50.8 inch ST2K Super Drive 20 LED Light Bar LEDST2K-50-20L
SKU code: LEDST2K-50-20L
PERFORMANCE ON OVERDRIVE.
Hit the ‘on’ button and our ST2K-20L 51” Super- Drive LED light bar’s motor-sports pedigree instantly becomes evident. Compared to traditional optical systems| our innovative Super-Drive reflectors system delivers unmatched light intensity at the mid to long-range.
BEAM INGENUITY.
The ST2K has been designed around the intention to provide a powerful flood beam with a sufficient spot. The purpose of this style of beam is to pair up with a combo or spot beam and where the flood beam of the others tends to narrow off| the ST2K picks up and takes it out even further lighting up the shoulders of the road.
THE ART OF LED DESIGN.
The unconventional use of 20 x 15W rearward-facing high powered LEDs allows us to achieves new levels of beam intensity & control that simply isn’t possible with traditional reflector designs. The beam characteristics are designed to start working past the point where your high beam ends. The mid to long-range end of the beam opens to provide very effective spread illumination.
THE NITTY
GRITTY.
ADVANTAGES OF A LATERAL SPOT BEAM
- Excellent well rounded mid to long-range illumination
- Significantly minimizes adverse reflection from road signs
- Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
- An excellent alternative to HID| without the associated downsides
- The beam is 90m wide at approx 250m
KEY FEATURES
- LED Parking / Position Light Function
- Breather allows pressure equalization when rapid heat up and cool down cycles occur.
- Anodized Polyester Powder Coat
- Weatherproof Deutsch® DT2 Connector.
- Includes adjustable side brackets
- Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (compatible with both negative and positive switched vehicles).
- Protected against reverse polarity
- Shockproof| IP68 waterproof| UV Shielded
- Protected against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation Thermal Management
TECH SPECS
MAIN BEAM LED COUNT | 20 x 15W |
VOLTAGE | 12V & 24V |
LENS MATERIAL | Optical Grade| Hard Coated Lexan |
LUMENS | 20|000 |
HOUSING MATERIAL | 6063 Extrusion |
AMPERES | 20.7A @ 13.2v |
LIFESPAN | 50|000 |
SPOT BEAM | Driving Beam |
INGRESS PROTECTION | IP68 |
OPERATING TEMP | -40°C ~ +150°C |
WEIGHT | 5.790kg |
CERTIFICATES | E-Mark R10 | CE ✓ |
SKU | LEDST2K-50-20L |
Brand | STEDI |
Shipping Weight | 0.5000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
