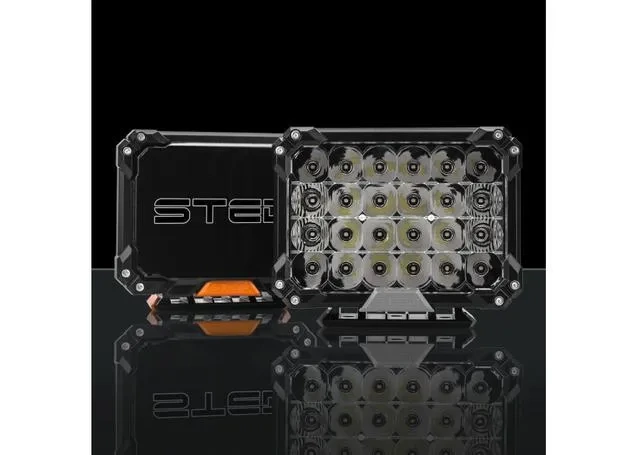

QUAD Pro LED Driving Lights



The compact housing design offers endless possibilities in terms of mounting locations.  We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

KEY FEATURES

  • Includes our legendary Easy-Fit plug and play high beam wiring harness
  • IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
  • 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
  • Environmentally sealed Deutsch DT-2 connectors
  • RFI and EMI suppressed circuit design| means no interference with radio or communications equipment.
  • High-Pressure Die-Cast Bracket
  • Spread and Spot beam reflectors built-in.

LUX GRAPH

LED 24 x Oslon High-Flux LED
RAW LUMENS 17,040 (Pair)
TESTED LUMENS 11,360 (Pair)
AMP DRAW  7.4A @ 13.2v (each)
POWER DRAW 97W (each)
CANDELA 693,889cd
BEAM PATTERN 4 x Spread 20 x Pencil Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT 1.4Kg (Including cover) (each)
PHOTOMETRIC DATA
10 m 6,938 Lx
50 m  277 Lx
200 m 17 Lx
300 m 7.7 Lx
400 m 4 Lx
500 m 2.7 Lx
833 m 1 Lx
SKU LEDQUAD-PRO
Brand STEDI
Shipping Weight 4.5000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
