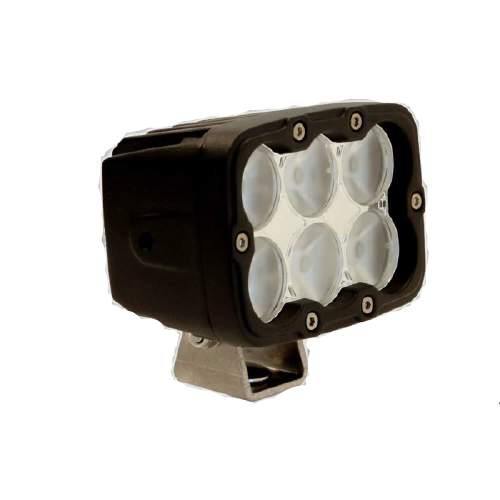

ATOM 25W LED Work Lamps have proved their high performance and rugged construction in some of the most harsh environments. The ATOM covers a wide range of applications from work lights on 4WD’s and light vehicles to lighting stairways| gangways and service areas on large machines| or additional lighting to camp areas. Its high light output relative to size| along with its IP68 waterproof rating| makes it extremely versatile.
SPECIFICATIONS
Wattage | 25 Watt |
Light Source | 6 x Hi-output LED’s |
Light Output (raw) | 2900Lumens |
Light Output (effective) | 2328 Lumens |
Voltage | 9-36V – 24V only |
Current Draw | 1A @ 24V |
IP Rating | IP69 |
Connector Type | 2 Pin Deutsch |
Housing | Die-Cast Alloy |
Lens Construction | Polycarbonate |
Bracket | 3mm SS |
Colour Temperature | 3000k, 4000k or 5700k |
Lifespan | 50’000 Hours |
Diameter/Dimensions | 92 x 88 X 58 |
Net Weight | 460g |
EMC Rating | CISPR 25 Class 3 |
Mounting Suitable | Upright and Pendant |
Beams Available | 25 and 60 deg |
Warranty | 5 Years |
PART NUMBER | – |
Wide Flood – Yellow Body | DVA20LEDWF |
Euro Beam – Yellow Body | DVA20LEDEU |
Wide Flood – Black Body | DVA20LEDWFR |
Euro Beam – Black Body | DVA20LEDEUR |
Wide Flood – Red Body | DVA25LEDREDWF/B |
Euro Beam – Red Body | DVA25LEDREDEU/B |
SKU | DVA20LEDWFR |
Brand | Ultra Vision |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
