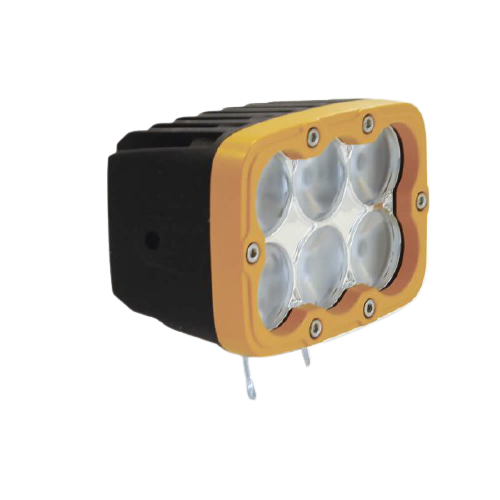

ATOM 25W LED Work Lamps have proved their high performance and rugged construction in some of the most harsh environments.  The ATOM covers a wide range of applications from work lights on 4WD’s and light vehicles to lighting stairways| gangways and service areas on large machines| or additional lighting to camp areas.  Its high light output relative to size| along with its IP68 waterproof rating| makes it extremely versatile.

SPECIFICATIONS

Wattage 25 Watt
Light Source 6 x Hi-output LED’s
Light Output (raw) 2900Lumens
Light Output (effective) 2328 Lumens
Voltage 9-36V – 24V only
Current Draw 1A @ 24V
IP Rating IP69
Connector Type 2 Pin Deutsch
Housing Die-Cast Alloy
Lens Construction Polycarbonate
Bracket 3mm SS
Colour Temperature 3000k, 4000k or 5700k
Lifespan 50’000 Hours
Diameter/Dimensions 92 x 88 X 58
Net Weight 460g
EMC Rating CISPR 25 Class 3
Mounting Suitable Upright and Pendant
Beams Available 25 and 60 deg
Warranty 5 Years
PART NUMBER
Wide Flood – Yellow Body DVA20LEDWF
Euro Beam – Yellow Body DVA20LEDEU
Wide Flood – Black Body DVA20LEDWFR
Euro Beam – Black Body DVA20LEDEUR
Wide Flood – Red Body DVA25LEDREDWF/B
Euro Beam – Red Body DVA25LEDREDEU/B
SKU DVA20LEDWF
Brand Ultra Vision
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
