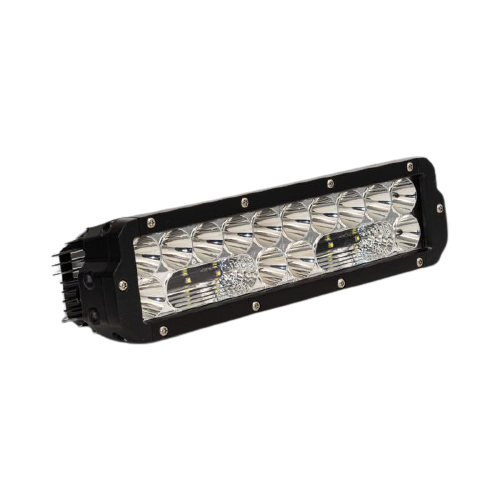

The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® optic for width and a Contrl® optic for distance| the Nitro Light Bar takes performance to another level.
Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.
- The Hi-Beam function utilises all the LEDs in the light bar using 5700k temperature LEDs: Perfect for open road driving.
- The Lo-Beam function uses only the spread optics with warmer| 4000k LEDs| reducing glare on road signs and fog.
Both side and base mounts are available| ensuring that fitment is simple in any application.
A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.
Beam Patterns
105W NITRO LIGHT BAR SPECIFICATIONS | |
---|---|
Wattage | 105 |
Light Source | 20 x 5w LEDs |
Light Output – Raw | 12320 Lumens |
Light Output – Effective | 8865 Lumens |
Voltage | 9-36V |
Current Draw | 8A |
Operating Temp. | -40 to 80 Deg C |
Waterproof Rating | IP68 |
Connector Type | Deutsch |
Housing | Extruded Aluminium |
Lens Construction | Polycarbonate |
Bracket | Stainless Steel and Alloy |
Colour | 4000K or 5700K |
Lifespan | 50,000 Hours |
Dimensions | 324 x 92 x 84mm |
Net Weight | 1.9 kg |
Mounting Suitable | Base and side mount |
Beams Available | Combo Widr |
Warranty | 5 Years |
Part Number | DVM105LEDW |
Outer Lens Cover Included Free | Yes |
SKU | DVM105LEDW |
Brand | Ultra Vision |
Shipping Weight | 2.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
