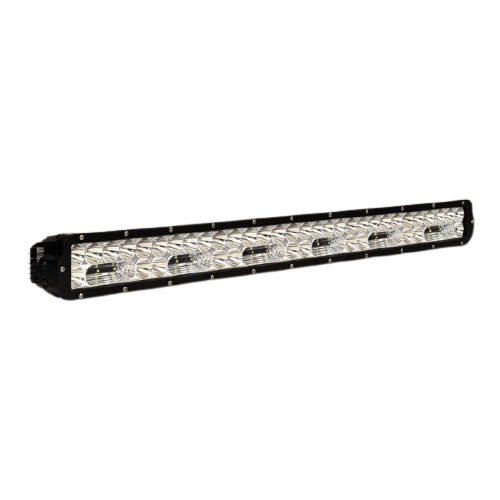

Ultra Vision NITRO Maxx 305W 35″ LED Light bar DVM305LEDW
SKU code: DVM305LEDW
The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® optic for width and a Contrl® optic for distance| the Nitro Light Bar takes performance to another level.
Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.
- The Hi-Beam function utilises all the LEDs in the light bar using 5700k temperature LEDs: Perfect for open road driving.
- The Lo-Beam function uses only the spread optics with warmer| 4000k LEDs| reducing glare on road signs and fog.
Both side and base mounts are available| ensuring that fitment is simple in any application.
A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.
Beam Pattern
305W NITRO LIGHT BAR SPECIFICATIONS | |
---|---|
Part Number | DVM305LEDW |
Warranty | 5 Years |
Beams Available | Combo Widr |
Mounting Suitable | Base and side mount |
Net Weight | 5.3 kg |
Dimensions | 885 x 92 x 84mm |
Lifespan | 50,000 Hours |
Colour | 4000K or 5700K |
Bracket | Stainless Steel and Alloy |
Lens Construction | Polycarbonate |
Housing | Extruded Aluminium |
Connector Type | HD Deutsch |
Waterproof Rating | IP68 |
Operating Temp. | -40 to 80 Deg C |
Current Draw | 24A |
Voltage | 9-36V |
Light Output – Effective | 26590 Lumens |
Light Output – Raw | 36960 Lumens |
Light Source | 60 x 5w LEDs |
Wattage | 300 |
Outer Lens Cover Included Free | Yes |
SKU | DVM305LEDW |
Brand | Ultra Vision |
Shipping Weight | 4.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
