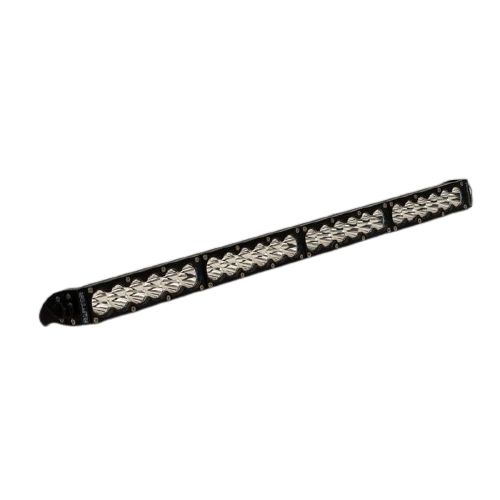

Ultra Vision Raptor 120W 25″ LED Light bar RAP120LB
SKU code: RAP120LB
The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium| giving an extremely strong but light body. This| along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.
All RAPTOR lamps come complete stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products| the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.
Beam Pattern
| 120W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 120 |
| Light Source | 24 x 5w LEDs |
| Light Output – Raw | 14400 Lumens |
| Light Output – Effective | 11500 Lumens |
| Voltage | 9-36V |
| Current Draw | 8.9A @ 13.5V |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type | 2 Pin standard Deutsch |
| Housing | Die-Cast aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 630 x 51 x 73mm |
| Mounting Suitable | Base and side mount |
| Beams Available | Combo |
| Warranty | 3 Years |
| Part Number | RAP120LB |
| DISTANCE AT 1 LUX | 627 METRES |
| Weight | 2.1kg |
| Harness | DV12H Harness – Sold Seperately |
| SKU | RAP120LB |
| Brand | Ultra Vision |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.399m |
| Shipping Length | 0.100m |
