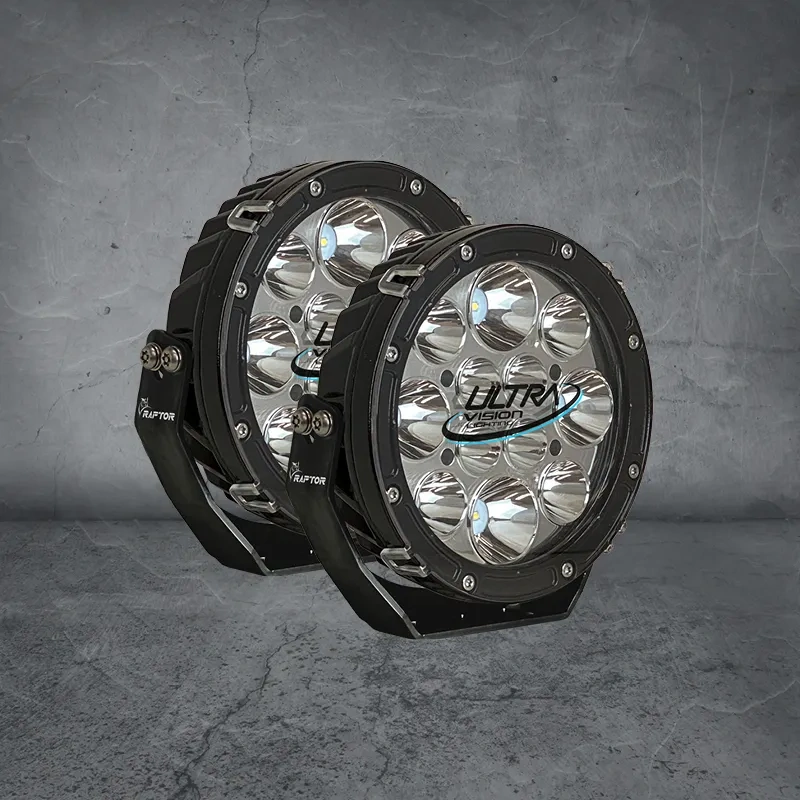

The RAPTOR LED Driving Lights feature a high pressure die-cast aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type.
All RAPTOR lamps come complete with a protective lens cover and easy-adjust mounting bracket. To make sure you get the right option for your own driving comfort| the lamps are available with either 4000k or 5700k Colour Temperature.
The lamps come complete with a clear lens cover| wiring harness and stainless steel brackets. All Raptor products are manufactured in Australia and covered by a 3-year warranty| adding total peace of mind.
Beam Patterns
SPECIFICATIONS | RAPTOR 70W |
---|---|
Wattage | 70W |
Light Source | 12 x 6W |
Light Output – Raw | 16,400 Lumens/lamp |
Light Output – Effective | 13,284 Lumens/lamp |
Voltage | 9-36V |
Current Draw | 5A @ 13.5V |
Operating Temperature | -40°C to +80°C |
Waterproof rating | IP68 |
Connector Type | 2 Pin standard Deutsch |
Housing | Die-Cast aluminium |
Lens Construction | Polycarbonate |
Bracket | Stainless Steel |
Beam Colour | 4000K or 5700K |
Lifespan | 50’000 Hours |
Diameter | 170mm |
Net Weight | 1.3kg |
Beams Available | Combo |
Warranty | 3 Years |
Hi/Lo Wiring Harness included | Yes |
PART NUMBERS | |
Raptor 70 4000K | RAP070DL4 |
Raptor 70 5700K | RAP070DL |
SKU | RAP070DL |
Brand | Ultra Vision |
Shipping Weight | 6.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
